TLP2361(V4-TPL,E: Features, Specs & More
In today's fast-paced electronics industry, high-speed digital interfacing and efficient isolation are crucial. The TAEC Product TLP2361(V4-TPL,E) from Toshiba Electronic Devices and Storage Corporation is an advanced optocoupler designed to meet these exact demands. In this comprehensive article, we'll delve into the intricacies of the TLP2361(V4-TPL,E, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
TLP2361(V4-TPL,E's Manufacturer
TLP2361(V4-TPL,E's Overview

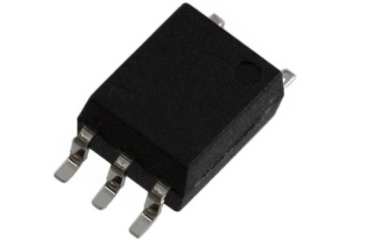

The TLP2361(V4-TPL,E is a 1-channel optocoupler with totem-pole DC-IN output designed for high-speed logic gate applications. Featuring a NAND Schmitt trigger logic gate, it excels in providing precise control for digital signal isolation between circuits. The optocoupler's unique ability to achieve high-speed data transmission with a maximum data rate of 15MBd makes it a valuable component for industries relying on high-performance electronic control systems.
Key Features
Let's delve into the standout features that make the TLP2361(V4-TPL,E a standout in the world of electronics:
· With a maximum data rate of 15MBd (typical), the TLP2361 can handle high-speed data transfer efficiently, ideal for fast-paced communication in factory automation systems and digital interfacing.
· The device is inverting, which allows it to effectively handle signals in configurations that require a reversal of polarity.
· With a maximum propagation delay time of only 80ns, this optocoupler ensures rapid response times for digital circuits.
· It can operate in temperatures ranging from -40°C to 125°C, making it suitable for a variety of environments, from industrial to commercial applications.
· The TLP2361 offers a 3750 Vrms isolation voltage, ensuring that the input and output sections remain electrically isolated, preventing damage from voltage spikes.
· The 5-pin SO package allows for efficient mounting on PCBs, making it compatible with modern manufacturing processes.
· With a maximum power dissipation of just 20mW, the TLP2361 is energy-efficient, helping to minimize operational costs.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the TLP2361(V4-TPL,E:
Type | Parameter |
Logic Gate Type | NAND Schmitt |
Number of Channels per Chip | 1 |
Maximum Data Rate | 15MBd(Typ) |
Polarity | Inverting |
Direction Type | Uni-Directional |
Minimum Isolation Voltage (Vrms) | 3750 |
Typical Rise Time (us) | 0.003 |
Typical Fall Time (us) | 0.003 |
Maximum Propagation Delay Time (ns) | 80 |
Standard | UL|cUL|CSA |
Input Type | DC |
Output Type | Totem-Pole |
Maximum Forward Current (mA) | 10 |
Maximum Continuous Output Current (mA) | 10 |
Minimum Forward Voltage (V) | 1.35 |
Typical Forward Voltage (V) | 1.5 |
Maximum Forward Voltage (V) | 1.65 |
Maximum Reverse Voltage (V) | 5 |
Maximum Power Dissipation (mW) | 20 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 2.1 |
Package Width | 4.55 |
Package Length | 3.7 |
PCB changed | 5 |
Standard Package Name | SO |
Supplier Package | SO |
Pin Count | 5 |
Lead Shape | Gull-wing |
* TLP2361(V4-TPL,E's Datasheet
Applications
The TLP2361(V4-TPL,E) is designed for a wide range of applications in the electronics sector:
· Factory Networking: Ensures reliable data transfer between devices in industrial environments.
· High-Speed Digital Interfacing for Instrumentation: Enables fast and accurate data communication between instrumentation systems.
· I/O Interface Boards: Provides high-speed isolation in I/O boards, improving data integrity and system performance.
Its versatility makes it an excellent choice for any application that requires reliable, high-speed, and isolated digital communication.
TLP2361(V4-TPL,E's Manufacturer
Established in 1989, Toshiba America Electronic Components, Inc. (TAEC) is the North America electronic components business of Toshiba. TAEC offers a broad IC and discrete product line including high-end microcontrollers, ASICs and ASSPs for automotive, multimedia, industrial, telecoms and networking applications. The company also has a wide range of power semiconductor solutions as well as storage products including Enterprise and Consumer HDDs.
Conclusion
The TLP2361(V4-TPL,E) Optocoupler from TAEC stands out as a high-performance solution for a variety of applications, particularly in digital interfacing and factory networking. With its exceptional speed, reliable isolation, and robust specifications, it is an essential component for systems requiring high data throughput and precision.
